China OEM High Quality140MM 160MM 168MM 200MM Stainless Steel UPVC Big Size Ball Valve Kanggo Project DN200 pabrik lan manufaktur |Pntek

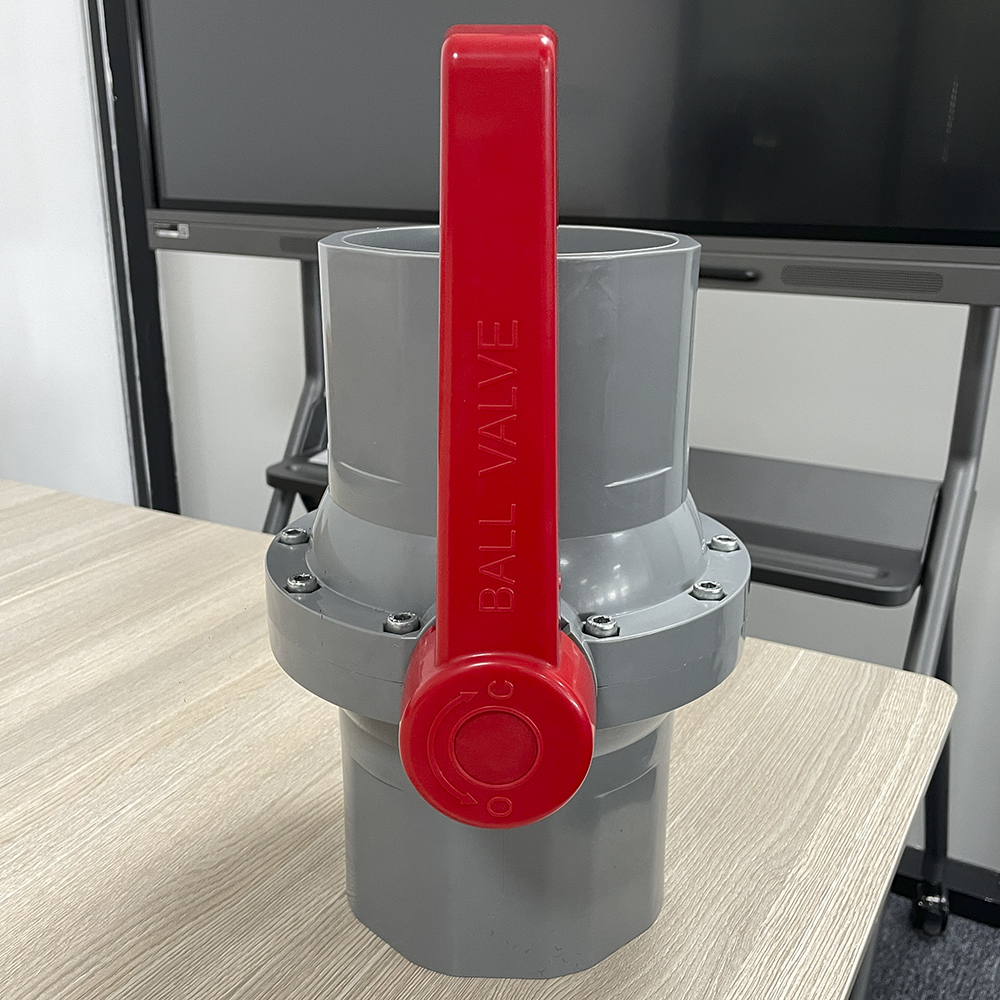

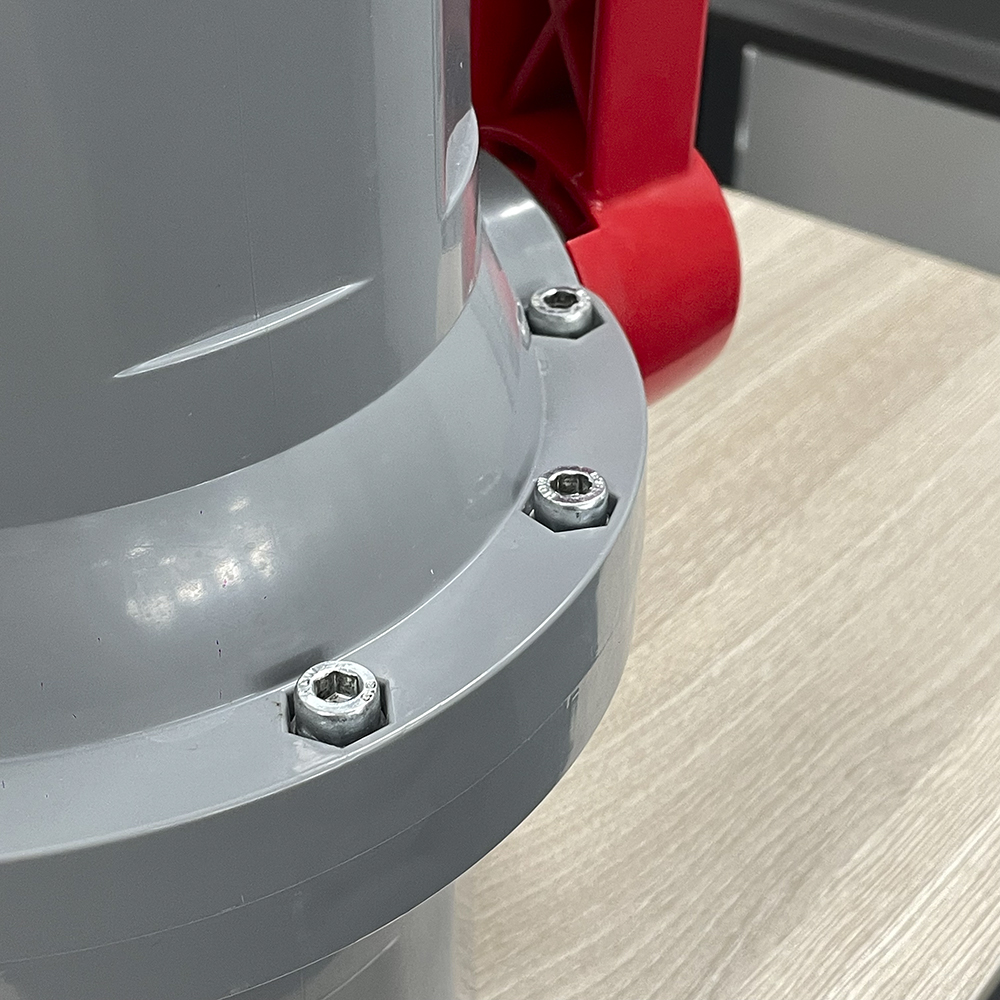

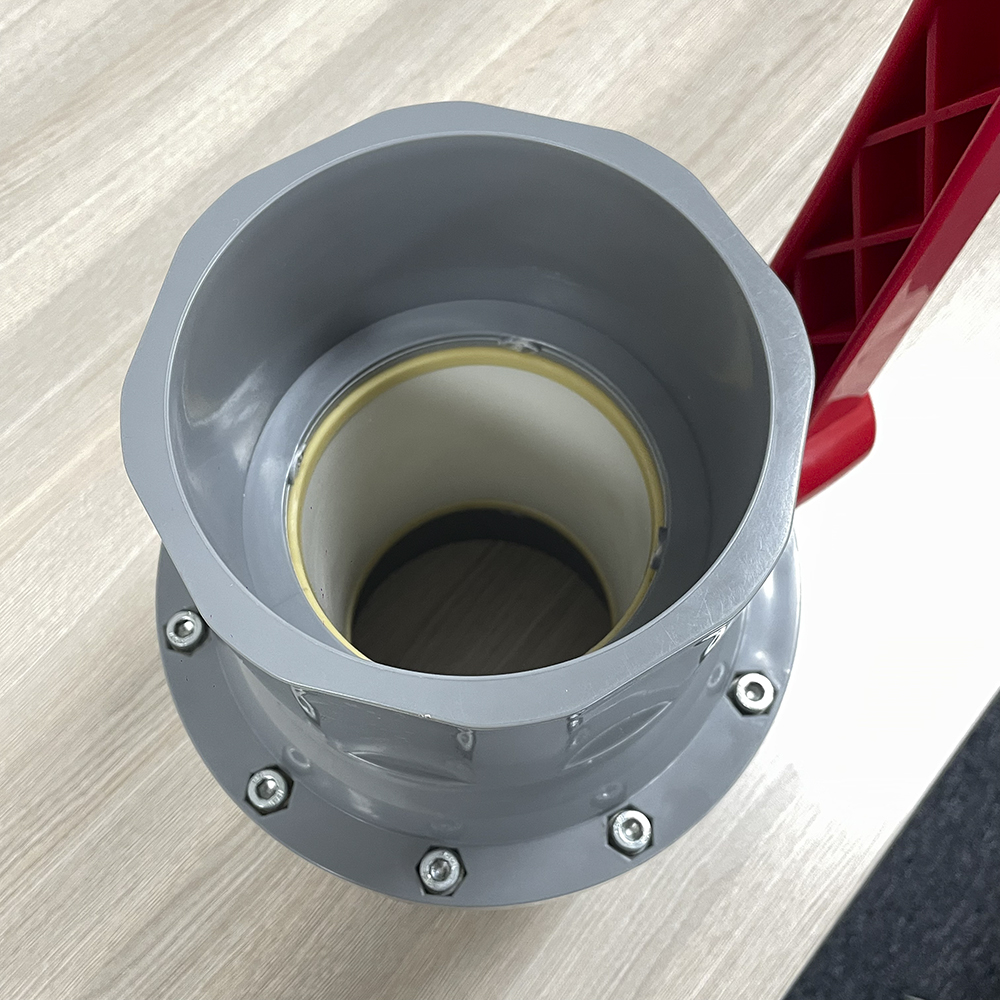

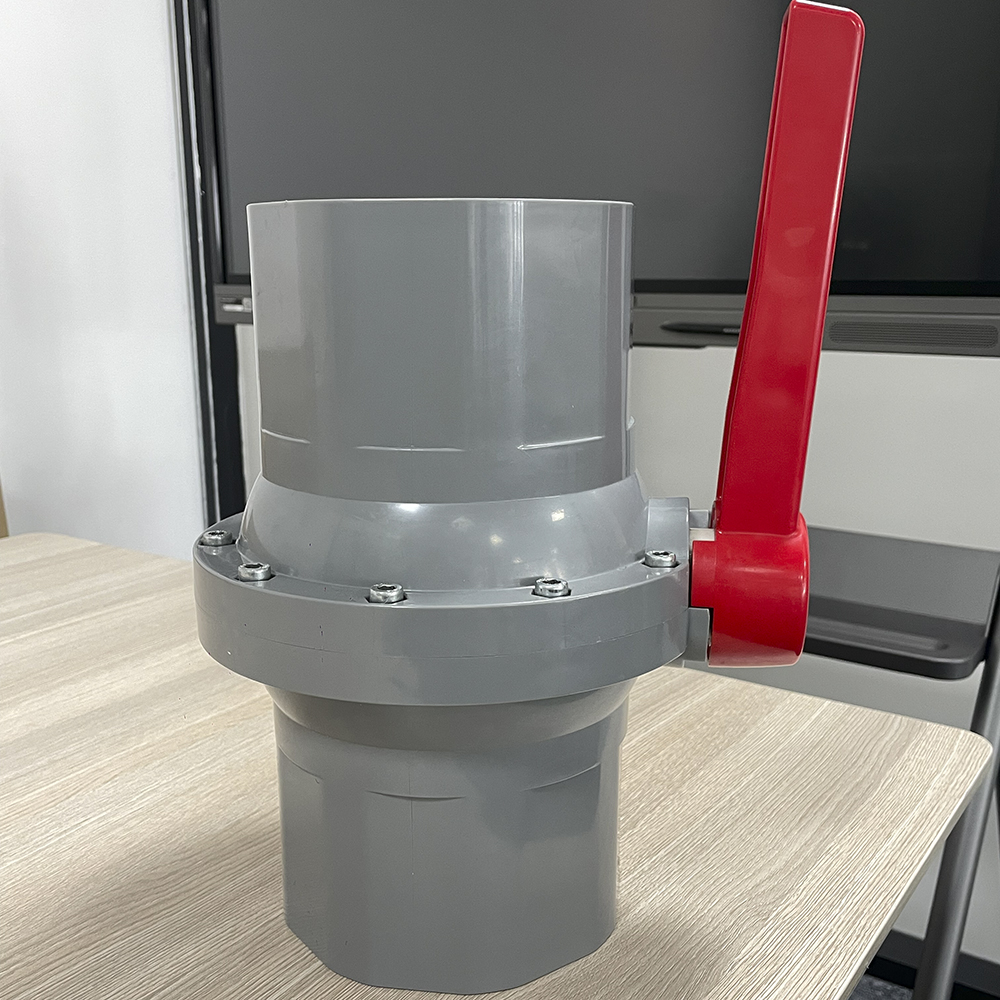

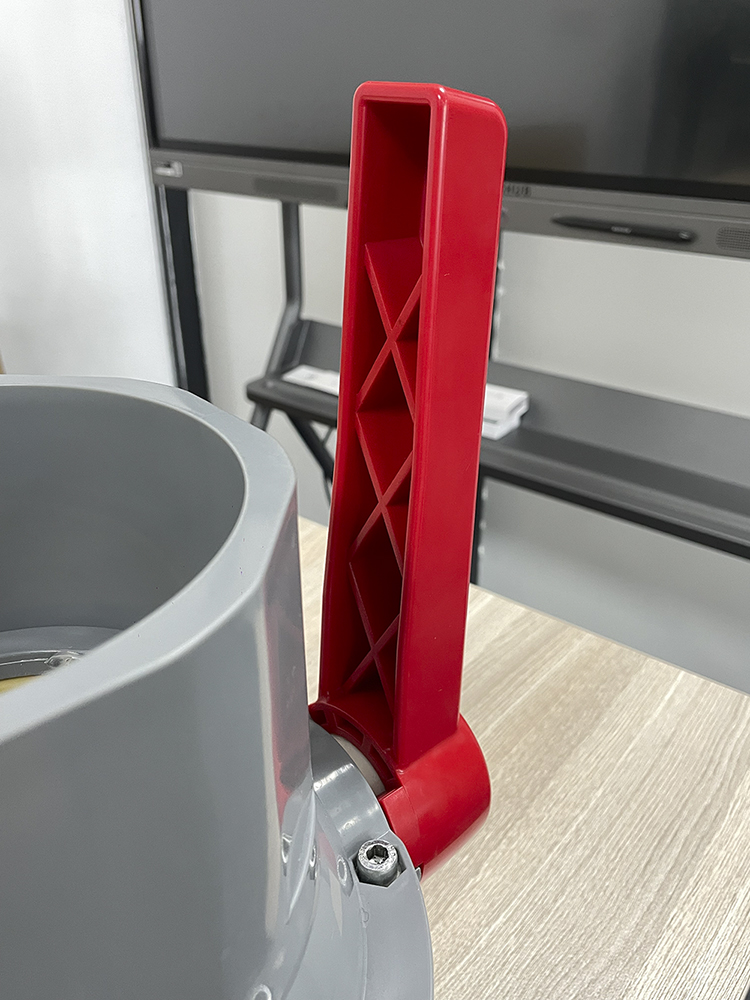

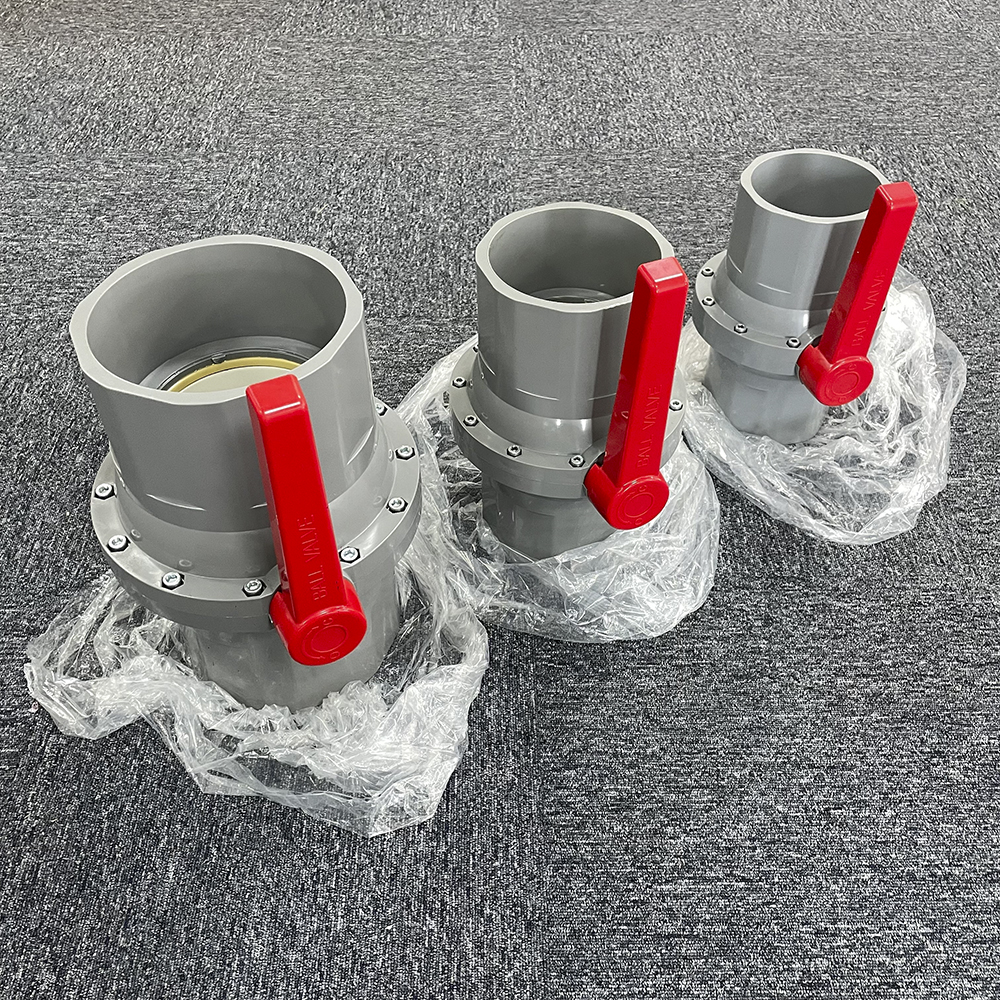

OEM Kualitas Tinggi 140MM 160MM 168MM 200MM Stainless Steel UPVC Ukuran Besar Ball Valve Kanggo Proyek DN200

OEM High Quality140MM 160MM 168MM 200MM Stainless Steel UPVC Ball Valve Ukuran Besar Kanggo Proyek DN200 Gambar Unggulan

Katrangan singkat:

katup bal
1. Werna alus & desain Kompak
2. Leakproff operasi;
3.Light lan union ends nggawe instalasi gampang
4.Ekonomi minangka biaya transportasi sing luwih murah & umur kerja sing dawa
5.Inggih lan kontrol kualitas dhuwur
6. Ramah lingkungan, ora beracun
7.Weathering & abrasion resistance & banget resistance kimia
8. Digunakake ing bangunan, irigasi, industri lan kolam renang
9. pesenan cilik ditrima
10. Desain & logo pelanggan dipersilakan

ukuran:140 MM 160 MM 168 MM 200 MM

Pungkasan gabungan:ASTM BS DIN ISO JIS

Tekanan kerja:PN16

Kirimi email kanggo kita

Detail Produk

FAQ

Tag produk

Legenda lan peta fisik

produk tunggal

materi komponen

spesifikasi material

NO.	Part	Bahan	QTY
1	BADAN	UPVC, CPVC	1
2	STEM O-Ring	EPDM,FPM(NBR)	1
3	STEM	UPVC, CPVC	1
4	BOLA	UPVC, CPVC	1
5	SEAT SEAT	TPE,TPVC,TPO	2
6	KAB	PVC, ABS	1
7	TANGANI	PVC, ABS	1
8	SEKRET	SS304, BAJA	1

Tabel perbandingan parameter ukuran model

DIMENSI												Unit
MODEL	DN		15	20	25	32	40	50	65	80	100
	UKURAN		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	inch
	thd./ing	NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
	thd./ing	BSPT	14	14	11	11	11	11	11	11	11	mm
	JIS	I	20	20	24	26	30	31	45	48	53	mm
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7	mm
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98	mm
	ANSI	I	18	20	24	26	30	31	45	48	53	mm
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76	mm
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07	mm
	DIN	I	18	20	24	26	30	31	45	48	53	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		32	37.5	44	52	60	74	93	110	135	mm
